Logistic Regression II

Lecture 18

Author

Affiliation

Katie Solarz

Duke University
STA 199 Summer 2026: Session I

Recap

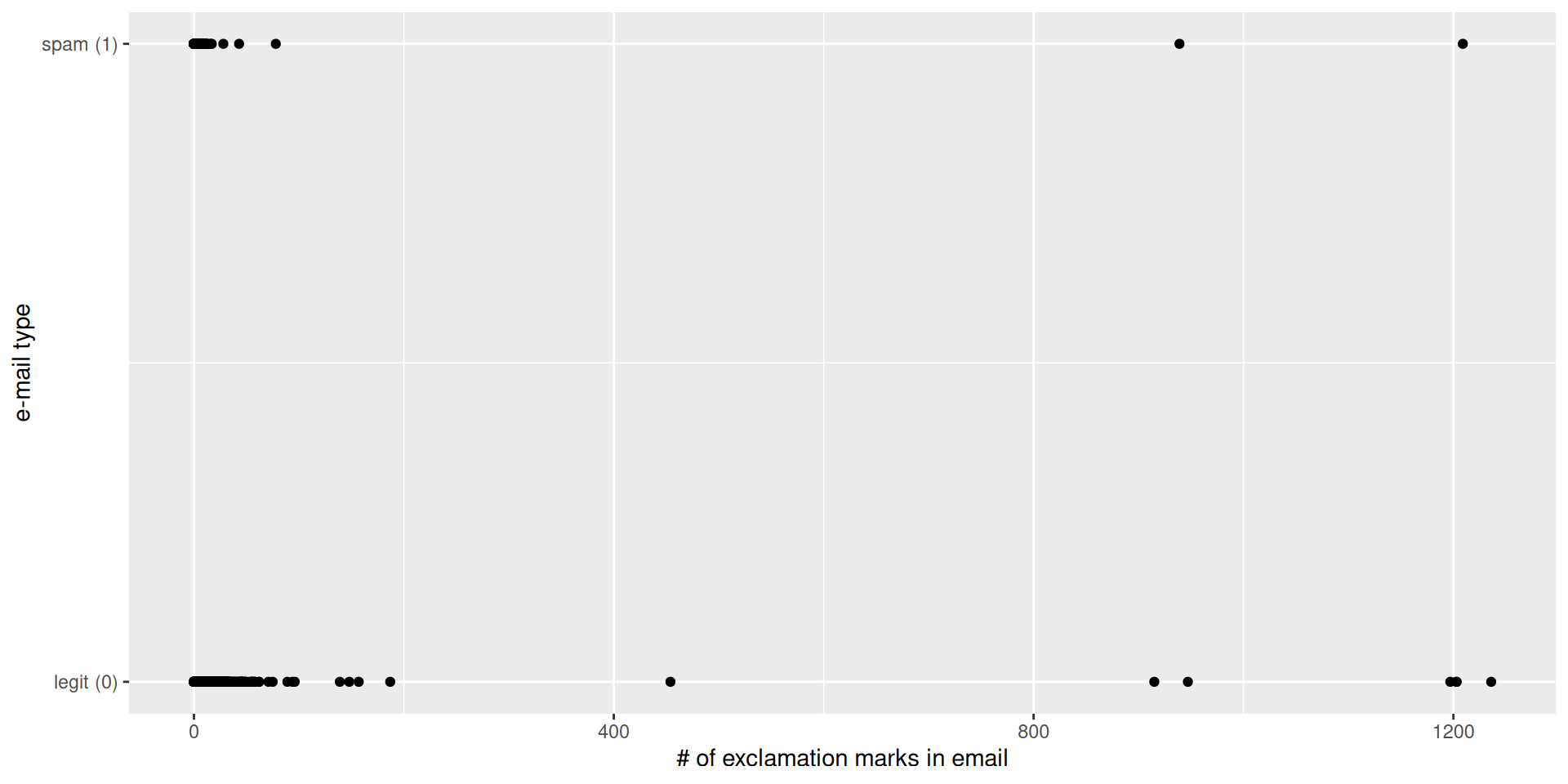

Last time: regression with a binary response

\[ y = \begin{cases} 1 & &&\text{eg. Yes, Win, True, Heads, Success, Spam}\\ 0 & &&\text{eg. No, Lose, False, Tails, Failure, Legit}. \end{cases} \]

New model: logistic regression

S-curve for the probability of “success”:

\[ \widehat{p} = \widehat{\text{Prob}(y=1)} = \frac{e^{b_0+b_1x}}{1+e^{b_0+b_1x}}. \]

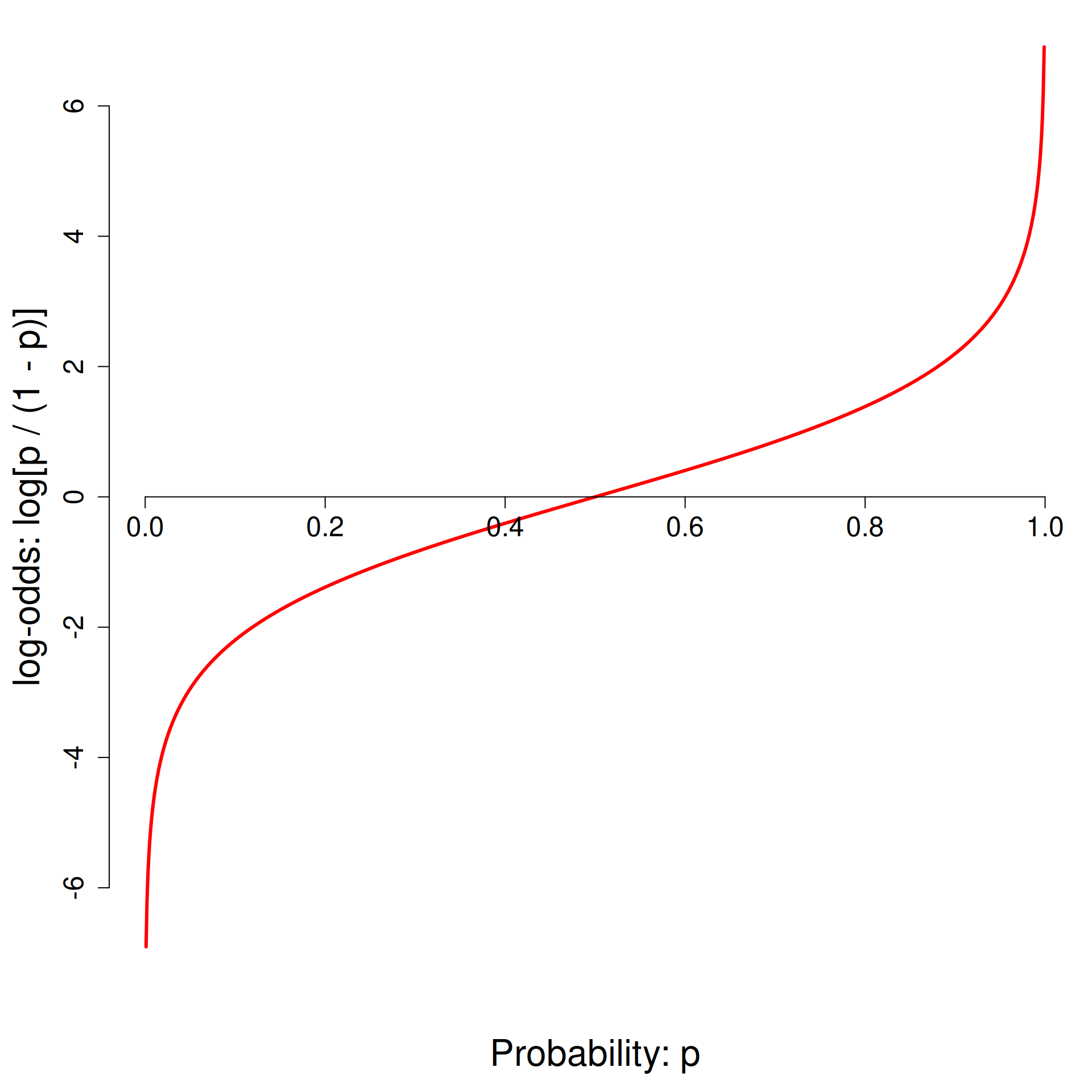

Linear model for the log-odds:

\[ \log\left(\frac{\hat{p}}{1-\hat{p}}\right) = b_0+b_1x. \]

These are equivalent.

R syntax is largely unchanged

Just use logistic_reg instead of linear_reg:

. . .

simple_logistic_fit <- logistic_reg() |>
  fit(spam ~ exclaim_mess, data = email)

tidy(simple_logistic_fit)

# A tibble: 2 × 5
  term          estimate std.error statistic p.value
  <chr>            <dbl>     <dbl>     <dbl>   <dbl>
1 (Intercept)  -2.27      0.0553     -41.1     0
2 exclaim_mess  0.000272  0.000949     0.287   0.774

. . .

Fitted equation for the log-odds:

\[ \log\left(\frac{\hat{p}}{1-\hat{p}}\right) = -2.27 + 0.000272\times exclaim~mess \]

Interpretations are strange and delicate

• If exclaim_mess = 0, then \[ \widehat{p}=\widehat{P(y=1)}=\frac{e^{-2.27}}{1+e^{-2.27}}\approx 0.09. \] So, our model predicts that an email with no exclamation marks has a 9% probability of being spam.

• If the email has an additional exclamation mark, we predict the odds of the email being spam to be higher by a factor of \(e^{b_1} = e^{0.000272}\approx 1.000272\), on average.

. . .

• The odds are higher because the scale factor is greater than one. If it had been 0.98, then the odds shrink and the interpretation would change to “we predict the odds to be lower by a factor of 0.98”

• For any slope estimate > 0 (i.e., \(b_1 > 0\)), the multiplicative factor will be larger than 1 (use “higher” or “increase” by a factor of \(e^{b_1}\)); for any slope estimate < 0, the multiplicative factor will be 0 < \(e^{b_1}\) < 1 (use “lower” or “decrease” by a factor of …); for a slope estimate of exactly 0, the multiplicative factor is \(e^0 = 1\), and so the odds remain unchanged

Compute predicted probabilities with the expit function

tidy(simple_logistic_fit) |>
  filter(term == "(Intercept)") |>
  summarize(
    prob0 = exp(estimate) / (1 + exp(estimate))
  )

# A tibble: 1 × 1
   prob0
   <dbl>
1 0.0934

• Note: When interpreting an intercept term, be mindful of which representation of the outcome the instructions / question asks for the interpretation with respect to

• Ex: “Interpret the intercept with respect to the probability of success…”

  • You should be using the expit function to get just \(\widehat{p}\) on the LHS!

• If a particular outcome is not specified, you can choose which to interpret with respect to, but be sure you’re doing the right math!

  • Ex: It would be incorrect to state the following here: “For an email with 0 exclamation points, we predict the odds of that email being spam to be -2.27.”

  • Why? -2.27 is the predicted log-odds. If you want to say something about the predicted odds, you must “un-log” your outcome i.e., compute \(e^{-2.27}\)

Print exponentiated estimates to screen

tidy(simple_logistic_fit) |>
  mutate(exp_estimate = exp(estimate)) |>
  select(term, estimate, exp_estimate, std.error, statistic, p.value)

# A tibble: 2 × 6
  term          estimate exp_estimate std.error statistic p.value
  <chr>            <dbl>        <dbl>     <dbl>     <dbl>   <dbl>
1 (Intercept)  -2.27            0.103  0.0553     -41.1     0
2 exclaim_mess  0.000272        1.00   0.000949     0.287   0.774

Here’s an alternative model

Dump all the predictors in:

Using a . on the RHS of the ~ in fit() will throw all columns in the data frame you supply into the model (except for the outcome column itself) as predictors. This is a time-saver and avoids the need for listing every variable manually

full_logistic_fit <- logistic_reg() |>
  fit(spam ~ ., data = email)

tidy(full_logistic_fit)

# A tibble: 22 × 5
   term         estimate std.error statistic  p.value
   <chr>           <dbl>     <dbl>     <dbl>    <dbl>
 1 (Intercept)  -9.09e+1   9.80e+3  -0.00928 9.93e- 1
 2 to_multiple1 -2.68e+0   3.27e-1  -8.21    2.25e-16
 3 from1        -2.19e+1   9.80e+3  -0.00224 9.98e- 1
 4 cc            1.88e-2   2.20e-2   0.855   3.93e- 1
 5 sent_email1  -2.07e+1   3.87e+2  -0.0536  9.57e- 1
 6 time          8.48e-8   2.85e-8   2.98    2.92e- 3
 7 image        -1.78e+0   5.95e-1  -3.00    2.73e- 3
 8 attach        7.35e-1   1.44e-1   5.09    3.61e- 7
 9 dollar       -6.85e-2   2.64e-2  -2.59    9.64e- 3
10 winneryes     2.07e+0   3.65e-1   5.67    1.41e- 8
# ℹ 12 more rows

Classification error

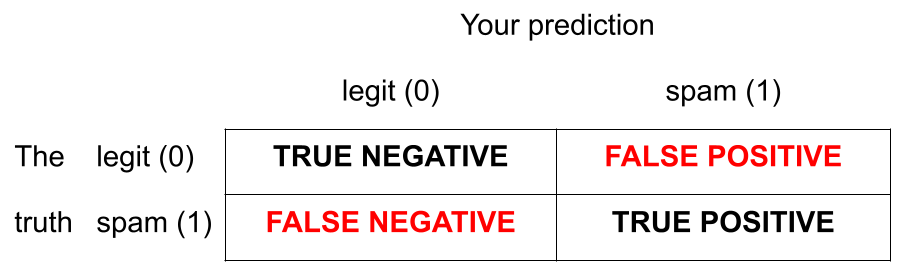

There are two kinds of mistakes:

We want to avoid both, but there’s a trade-off.

Jargon: False negative and positive

• False negative rate (FNR) is the proportion of actual positives that were classified as negatives.

  • FNR = (FN) / (FN + TP), where FN = # false negatives, TP = # true positives

• False positive rate (FPR) is the proportion of actual negatives that were classified as positives.

  • FPR = (FP) / (FP + TN), where FP = # false positives, TN = # true negatives

Tip

We want these both to be low!

Jargon: Sensitivity

Sensitivity is the proportion of actual positives that were correctly classified as positive.

• Also known as true positive rate (TPR) and recall

• Sensitivity = 1 − false negative rate (FNR)

• Useful when false negatives are more “expensive” than false positives

Tip

We want this to be high!

Jargon: Specificity

Specificity is the proportion of actual negatives that were correctly classified as negative

• Also known as true negative rate (TNR)

• Specificity = 1 − false positive rate (FPR)

Tip

We want this to be high!

The augment function

The augment function takes a data frame and “augments” it by adding three new columns on the left that describe the model predictions for each row:

• .pred_class: model prediction (\(\widehat{y}\)), based on a 50% threshold by default;
• .pred_0: model estimate of \(P(y=0)\);
• .pred_1: model estimate of \(P(y=1) = 1 - P(y = 0)\).

The augment function

The augment function takes a data frame and “augments” it by adding three new columns on the left that describe the model predictions for each row:

log_aug_full <- augment(full_logistic_fit, email)
log_aug_full

# A tibble: 3,921 × 24
   .pred_class .pred_0  .pred_1 spam  to_multiple from     cc
   <fct>         <dbl>    <dbl> <fct> <fct>       <fct> <int>
 1 0             0.867 1.33e- 1 0     0           1         0
 2 0             0.943 5.70e- 2 0     0           1         0
 3 0             0.942 5.78e- 2 0     0           1         0
 4 0             0.920 7.96e- 2 0     0           1         0
 5 0             0.903 9.74e- 2 0     0           1         0
 6 0             0.901 9.87e- 2 0     0           1         0
 7 0             1.000 7.89e-12 0     1           1         0
 8 0             1.000 1.24e-12 0     1           1         1
 9 0             0.862 1.38e- 1 0     0           1         0
10 0             0.922 7.76e- 2 0     0           1         0
# ℹ 3,911 more rows
# ℹ 17 more variables: sent_email <fct>, time <dttm>, image <dbl>,
#   attach <dbl>, dollar <dbl>, winner <fct>, inherit <dbl>,
#   viagra <dbl>, password <dbl>, num_char <dbl>, line_breaks <int>,
#   format <fct>, re_subj <fct>, exclaim_subj <dbl>,
#   urgent_subj <fct>, exclaim_mess <dbl>, number <fct>

Calculating the error rates

log_aug_full |>
  count(spam, .pred_class)

# A tibble: 4 × 3
  spam  .pred_class     n
  <fct> <fct>       <int>
1 0     0            3521
2 0     1              33
3 1     0             299
4 1     1              68

Calculating the error rates

log_aug_full |>
  count(spam, .pred_class) |>
  group_by(spam)

# A tibble: 4 × 3
# Groups:   spam [2]
  spam  .pred_class     n
  <fct> <fct>       <int>
1 0     0            3521
2 0     1              33
3 1     0             299
4 1     1              68

Calculating the error rates

log_aug_full |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 4 × 4
# Groups:   spam [2]
  spam  .pred_class     n       p
  <fct> <fct>       <int>   <dbl>
1 0     0            3521 0.991
2 0     1              33 0.00929
3 1     0             299 0.815
4 1     1              68 0.185

Calculating the error rates

log_aug_full |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(
    p = n / sum(n),
    decision = case_when(
      spam == "0" & .pred_class == "0" ~ "True negative",
      spam == "0" & .pred_class == "1" ~ "False positive",
      spam == "1" & .pred_class == "0" ~ "False negative",
      spam == "1" & .pred_class == "1" ~ "True positive"
    ))

# A tibble: 4 × 5
# Groups:   spam [2]
  spam  .pred_class     n       p decision
  <fct> <fct>       <int>   <dbl> <chr>
1 0     0            3521 0.991   True negative
2 0     1              33 0.00929 False positive
3 1     0             299 0.815   False negative
4 1     1              68 0.185   True positive

But wait!

If we change the classification threshold, we change the classifications, and we change the error rates:

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 0.25, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 4 × 4
# Groups:   spam [2]
  spam  .pred_class     n      p
  <fct>       <dbl> <int>  <dbl>
1 0               0  3263 0.918
2 0               1   291 0.0819
3 1               0   172 0.469
4 1               1   195 0.531

Classification threshold: 0.00

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 0.00, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 2 × 4
# Groups:   spam [2]
  spam  .pred_class     n     p
  <fct>       <dbl> <int> <dbl>
1 0               1  3554     1
2 1               1   367     1

Classification threshold: 0.25

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 0.25, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 4 × 4
# Groups:   spam [2]
  spam  .pred_class     n      p
  <fct>       <dbl> <int>  <dbl>
1 0               0  3263 0.918
2 0               1   291 0.0819
3 1               0   172 0.469
4 1               1   195 0.531

Classification threshold: 0.5

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 0.50, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 4 × 4
# Groups:   spam [2]
  spam  .pred_class     n       p
  <fct>       <dbl> <int>   <dbl>
1 0               0  3521 0.991
2 0               1    33 0.00929
3 1               0   299 0.815
4 1               1    68 0.185

Classification threshold: 0.75

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 0.75, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 4 × 4
# Groups:   spam [2]
  spam  .pred_class     n       p
  <fct>       <dbl> <int>   <dbl>
1 0               0  3544 0.997
2 0               1    10 0.00281
3 1               0   339 0.924
4 1               1    28 0.0763

Classification threshold: 1.00

log_aug_full |>
  mutate(
    .pred_class = if_else(.pred_1 > 1.00, 1, 0)
  ) |>
  count(spam, .pred_class) |>
  group_by(spam) |>
  mutate(p = n / sum(n))

# A tibble: 2 × 4
# Groups:   spam [2]
  spam  .pred_class     n     p
  <fct>       <dbl> <int> <dbl>
1 0               0  3554     1
2 1               0   367     1

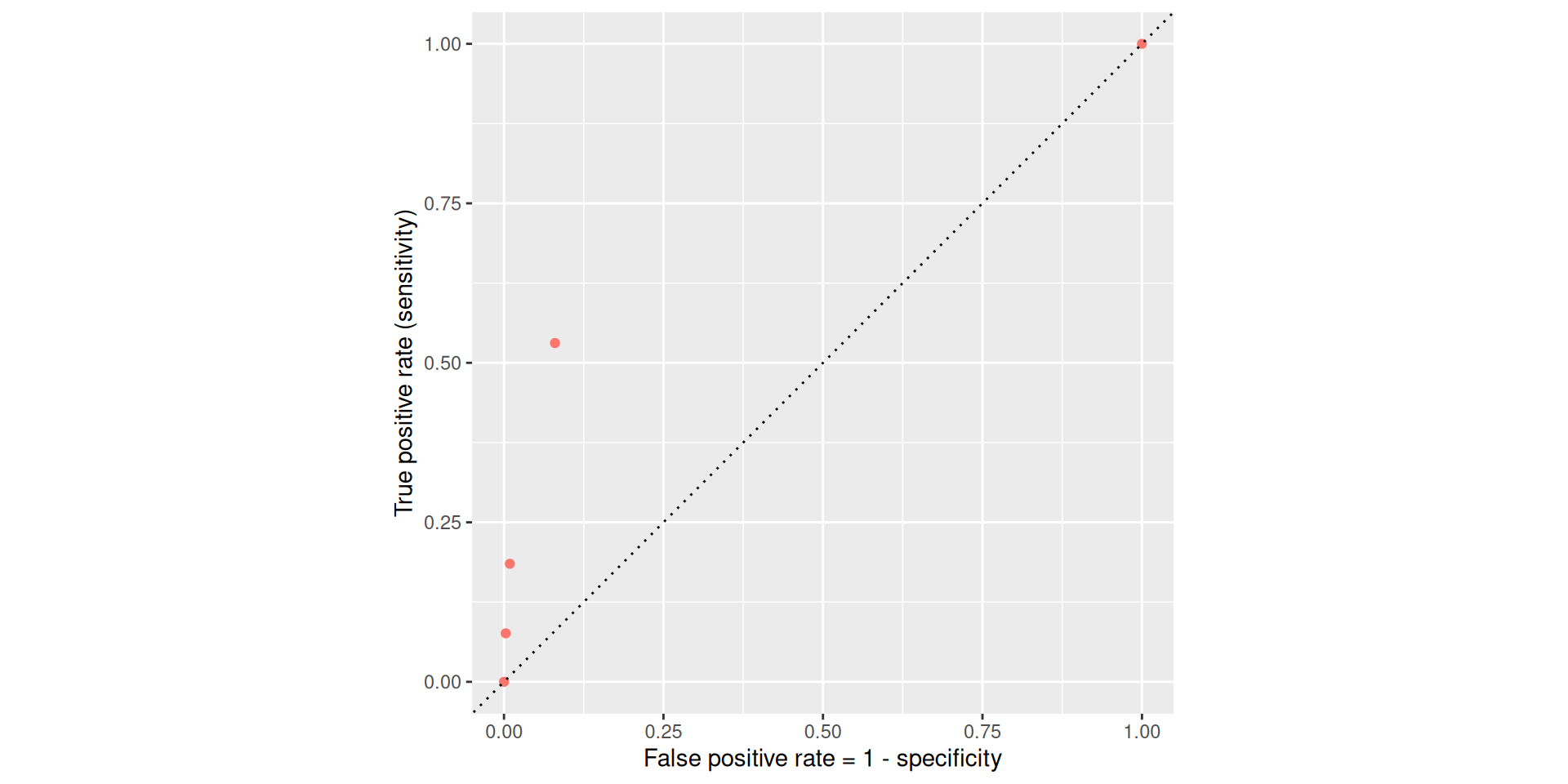

Let’s plot these error rates

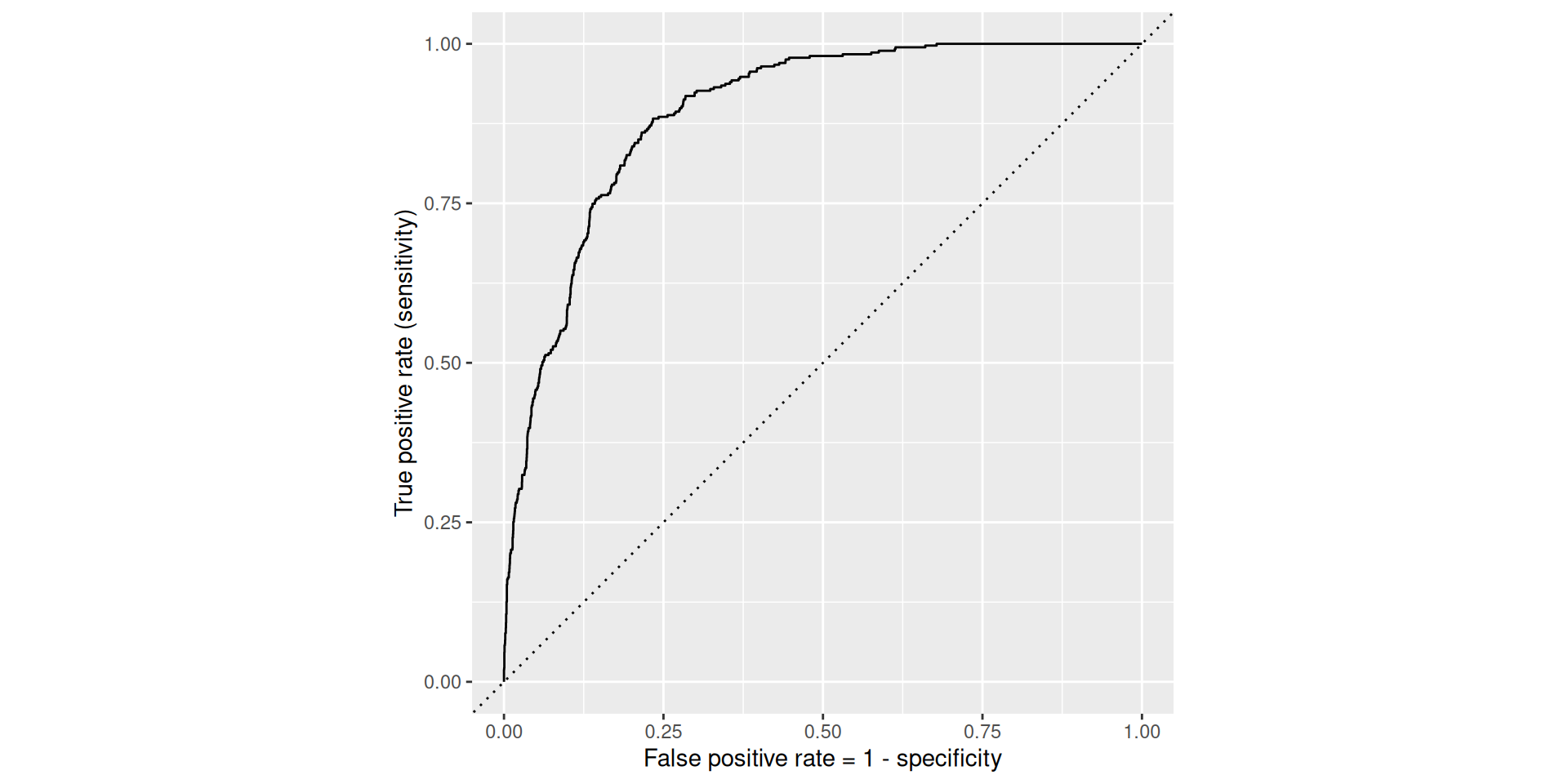

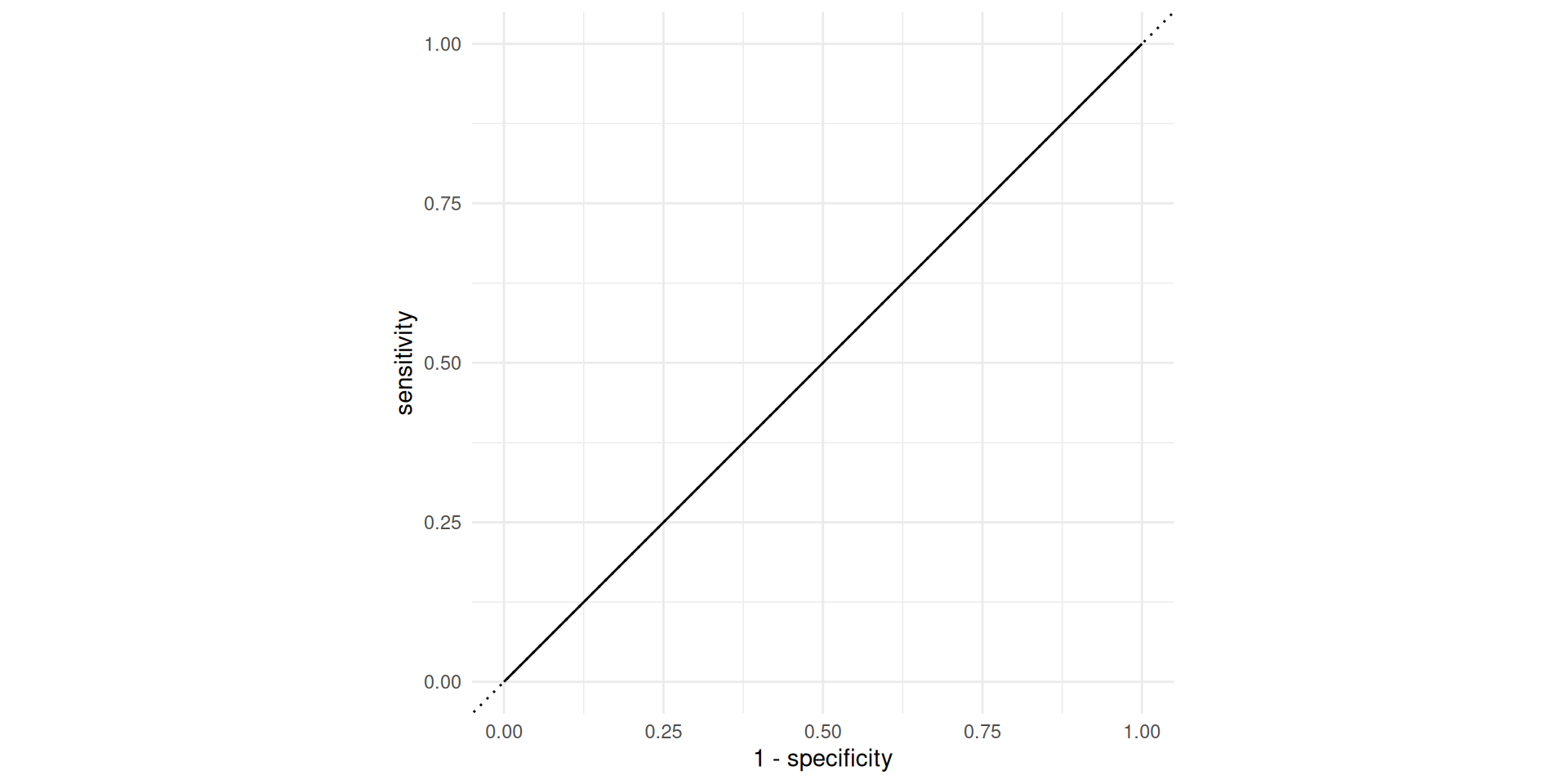

ROC curve

If we repeat this process for “all” possible thresholds \(0\leq p^\star\leq 1\), we trace out the receiver operating characteristic curve (ROC curve), which assesses the model’s performance across a range of thresholds:

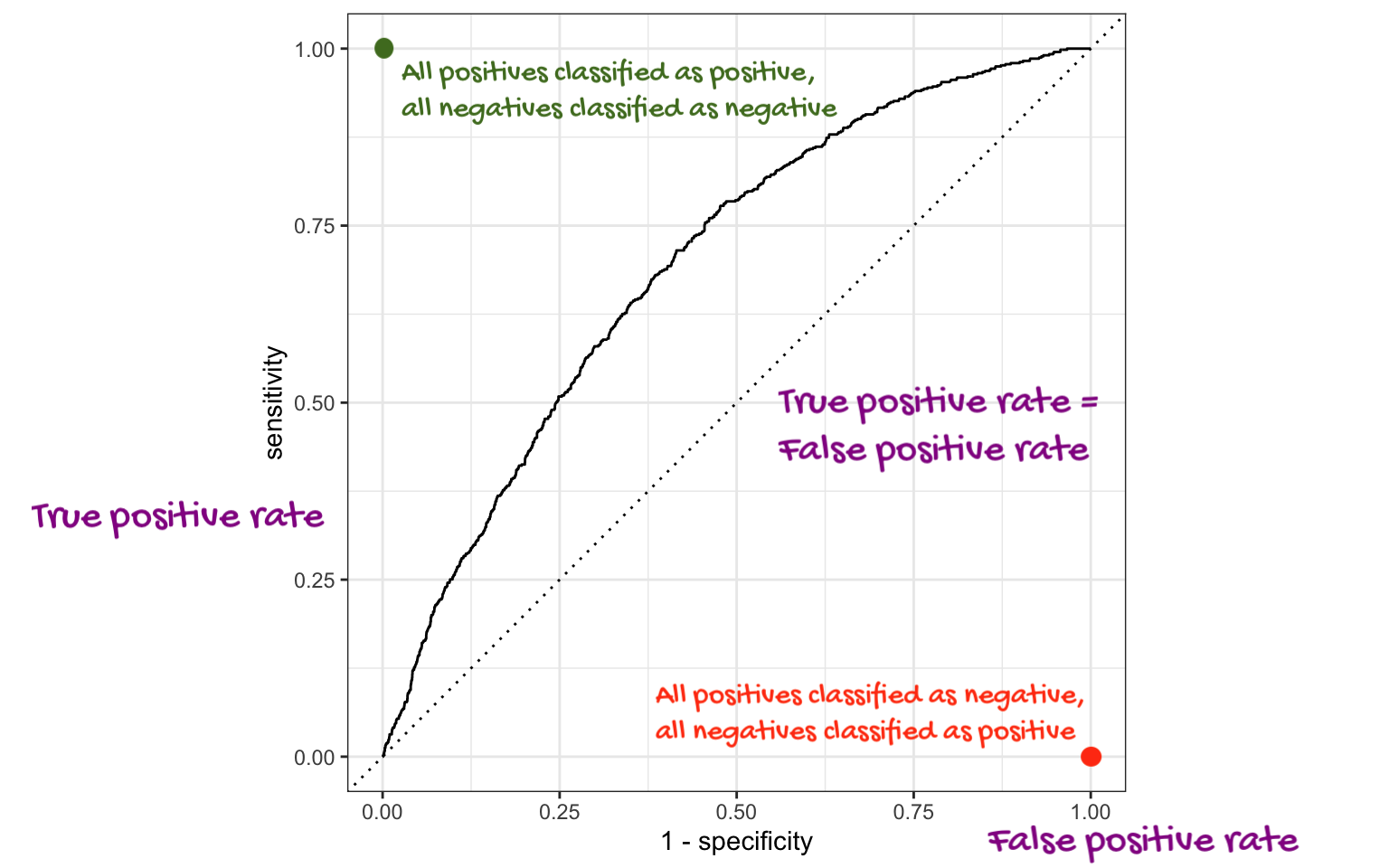

ROC curve

Which corner of the plot indicates the best model performance?

. . .

Upper left!

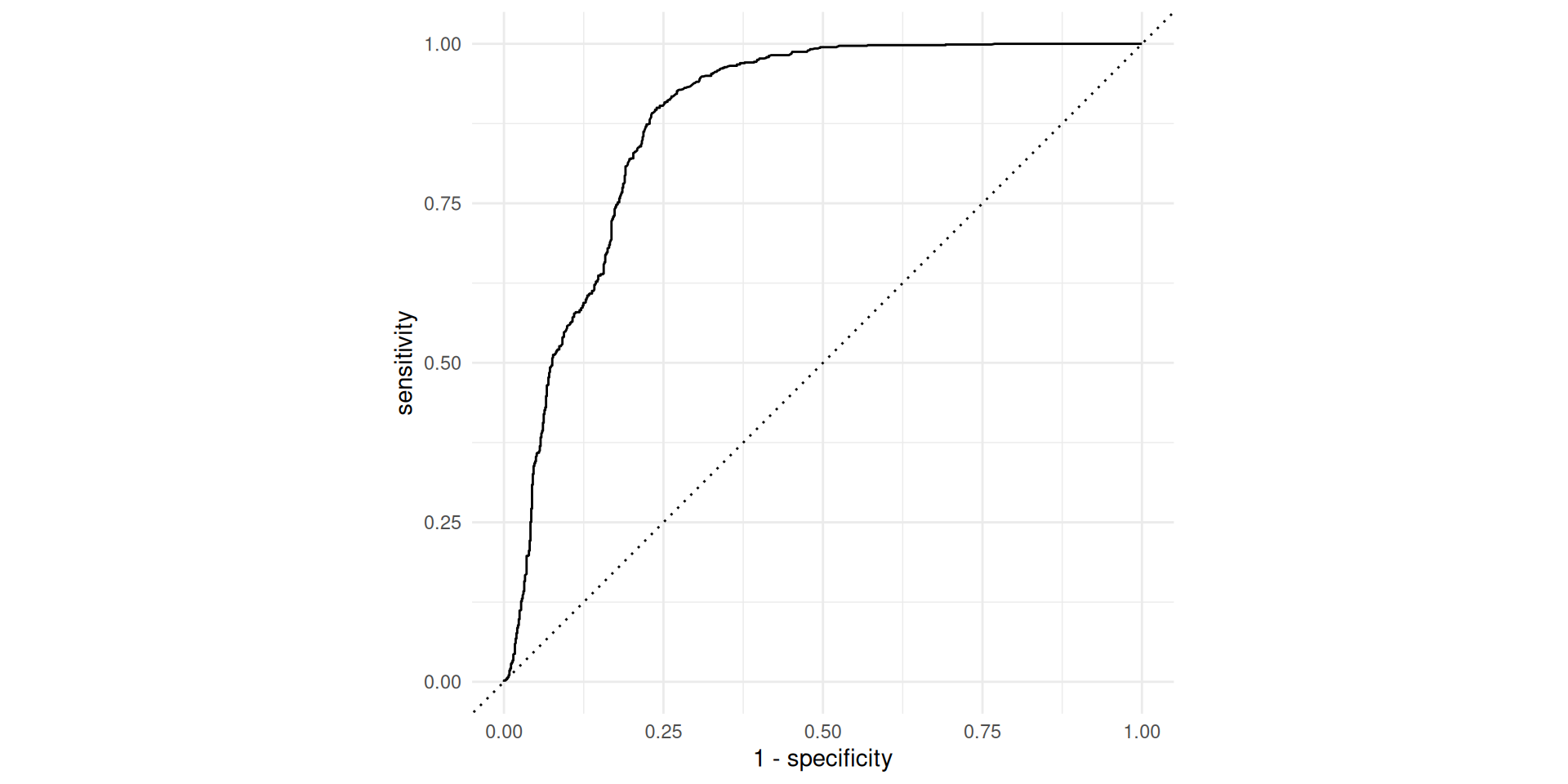

ROC for full model

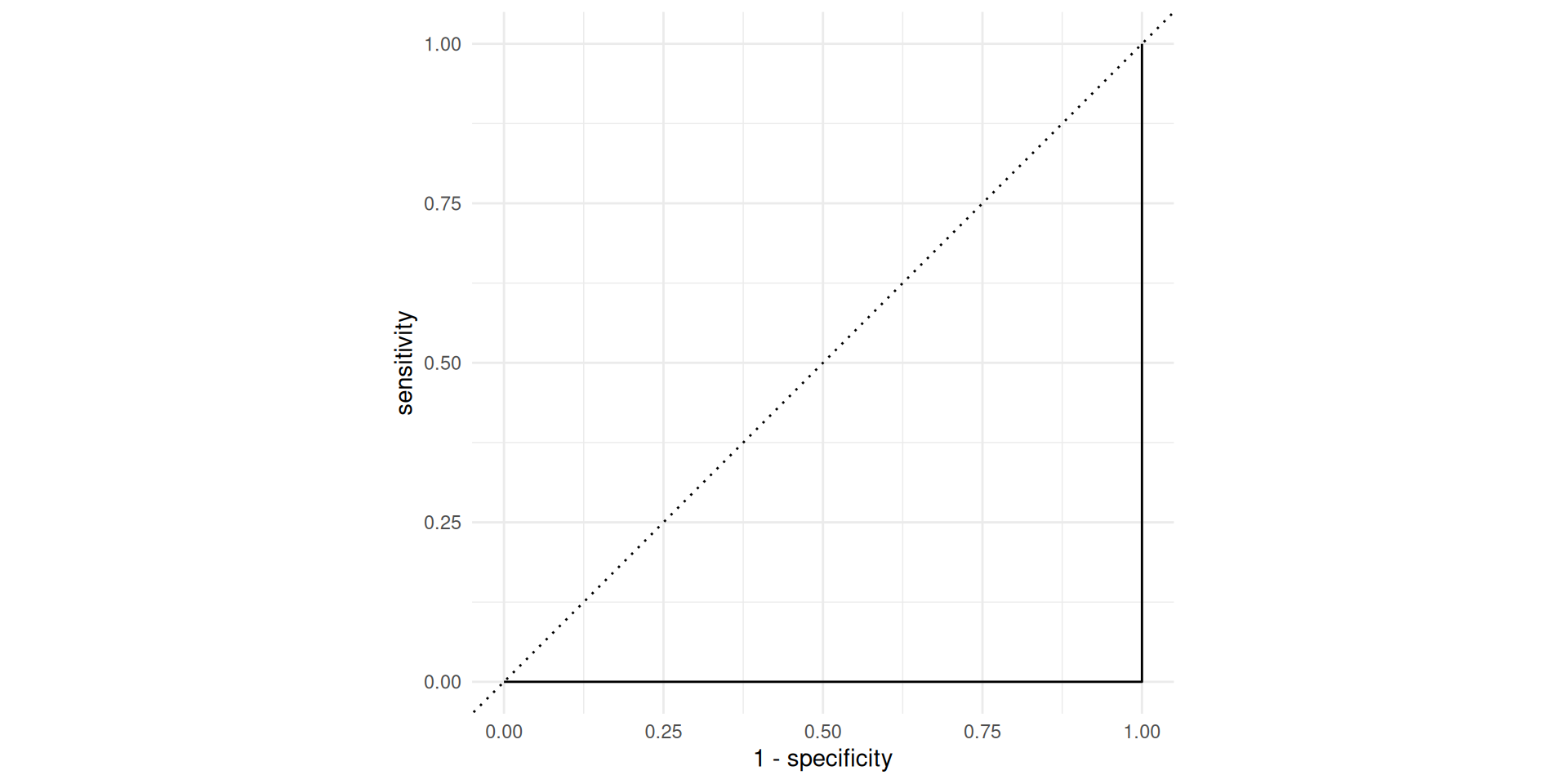

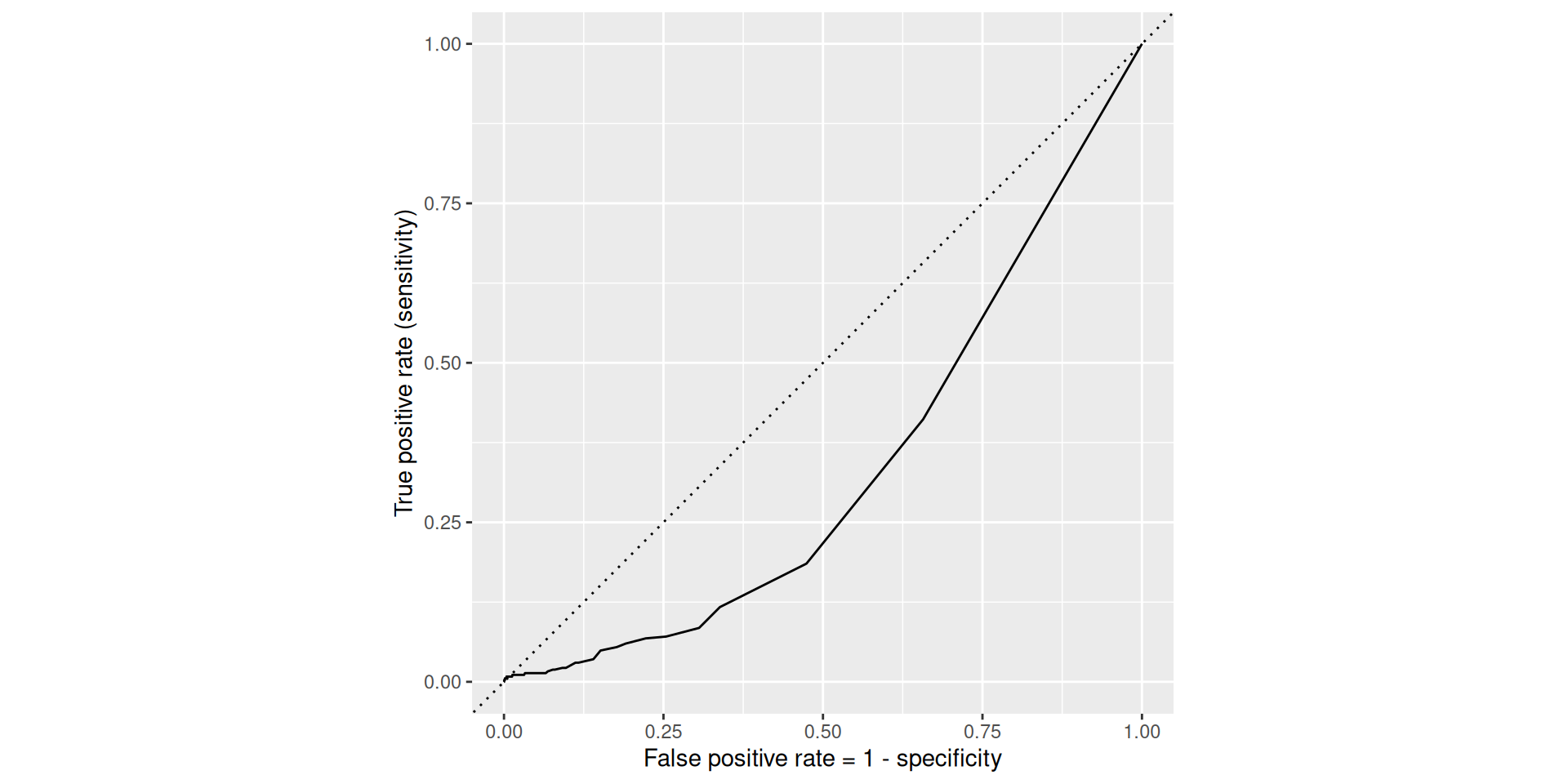

ROC for simple model

Comparing these two curves, the full model is better.

Model comparison

The farther up and to the left the ROC curve is, the better the classification accuracy. You can quantify this with the area under the curve.

Note

Area under the ROC curve (“AUC”) will be our “quality score” for comparing logistic regression models, NOT adjusted \(R^2\).

Washington forests

Data

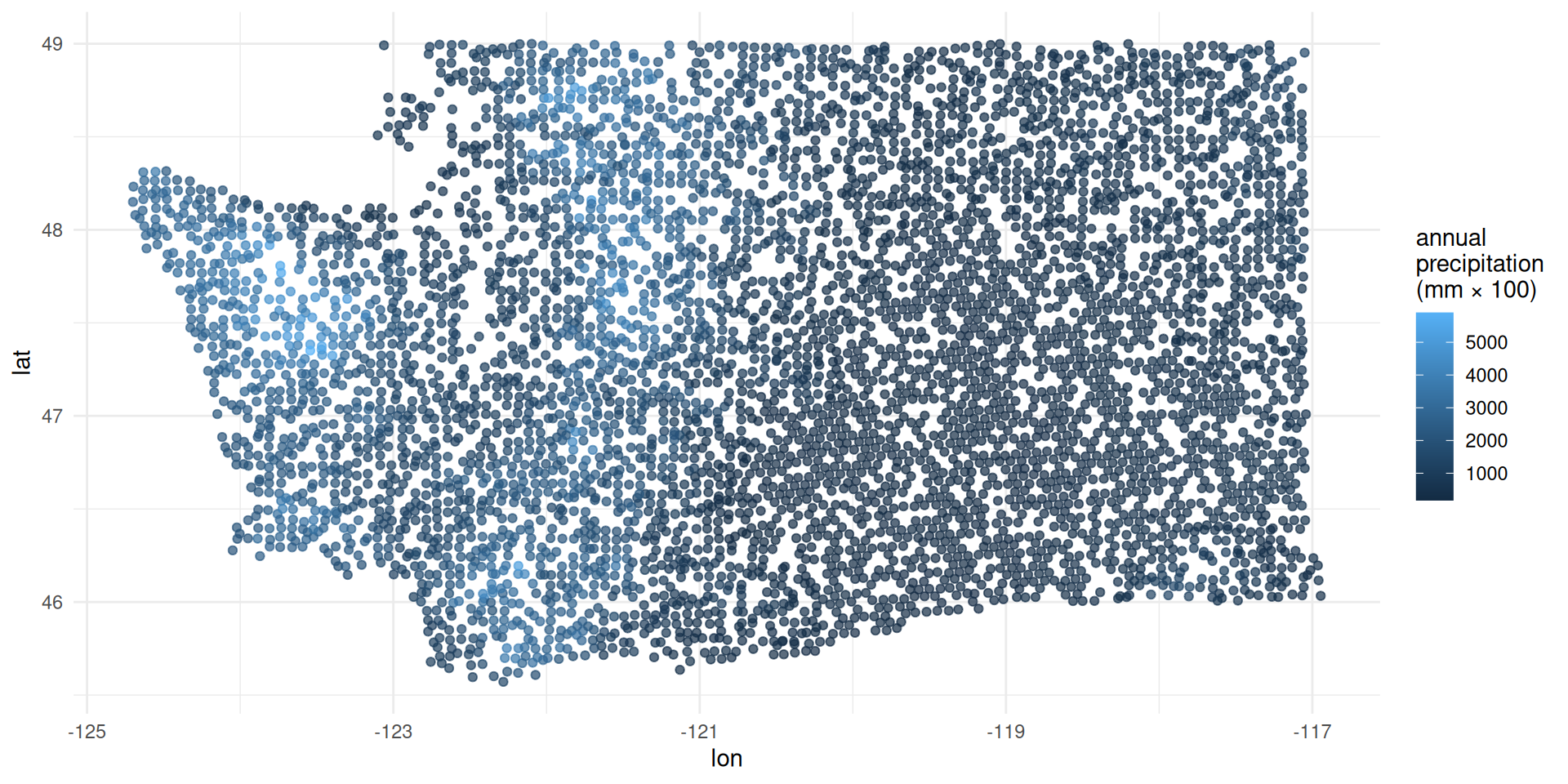

• The U.S. Forest Service maintains machine learning models to predict whether a plot of land is “forested.”

• This classification is important for research, legislation, land management, etc. purposes.

• Plots are typically remeasured every 10 years.

• The forested dataset contains the most recent measurement per plot.

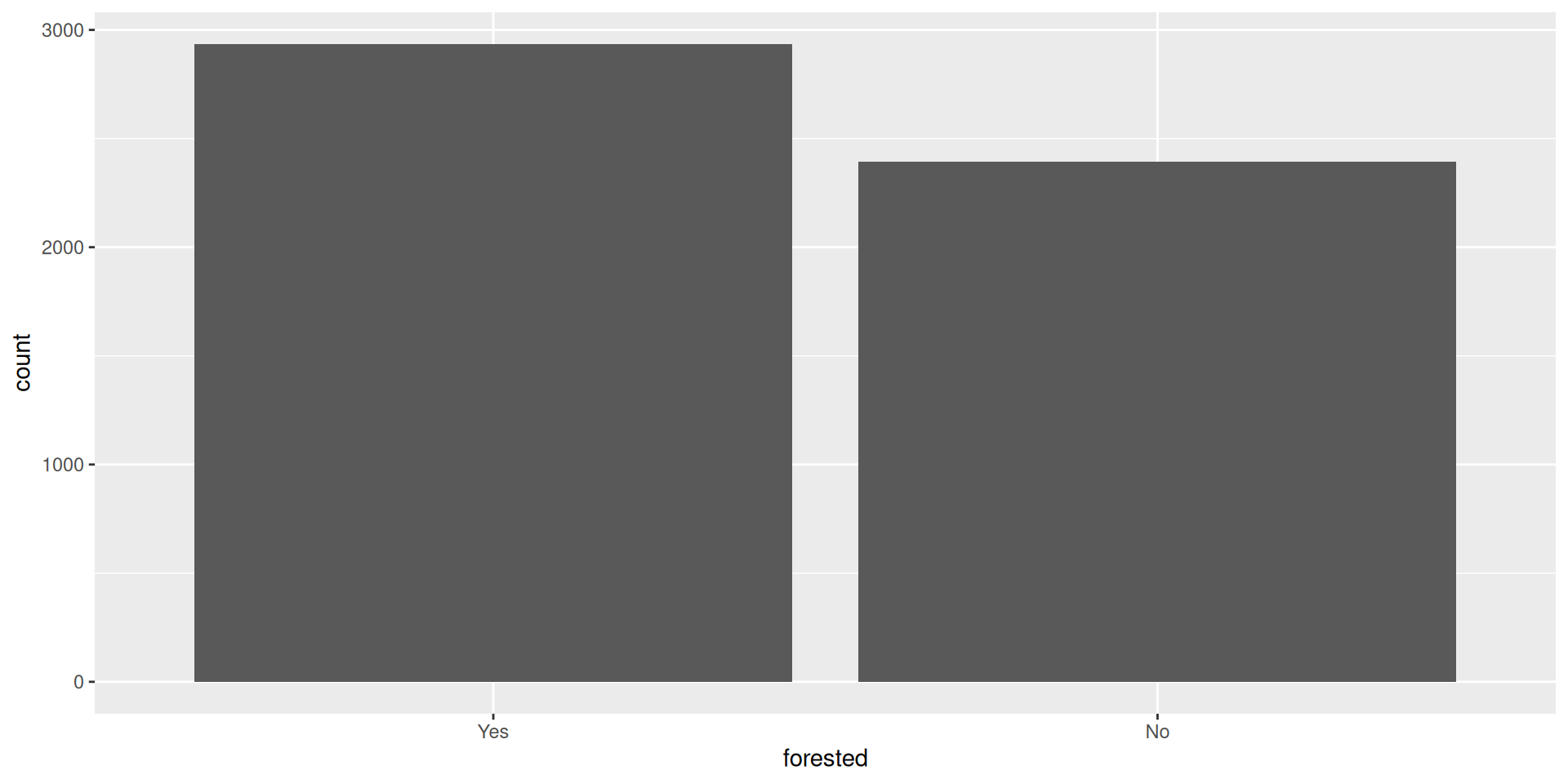

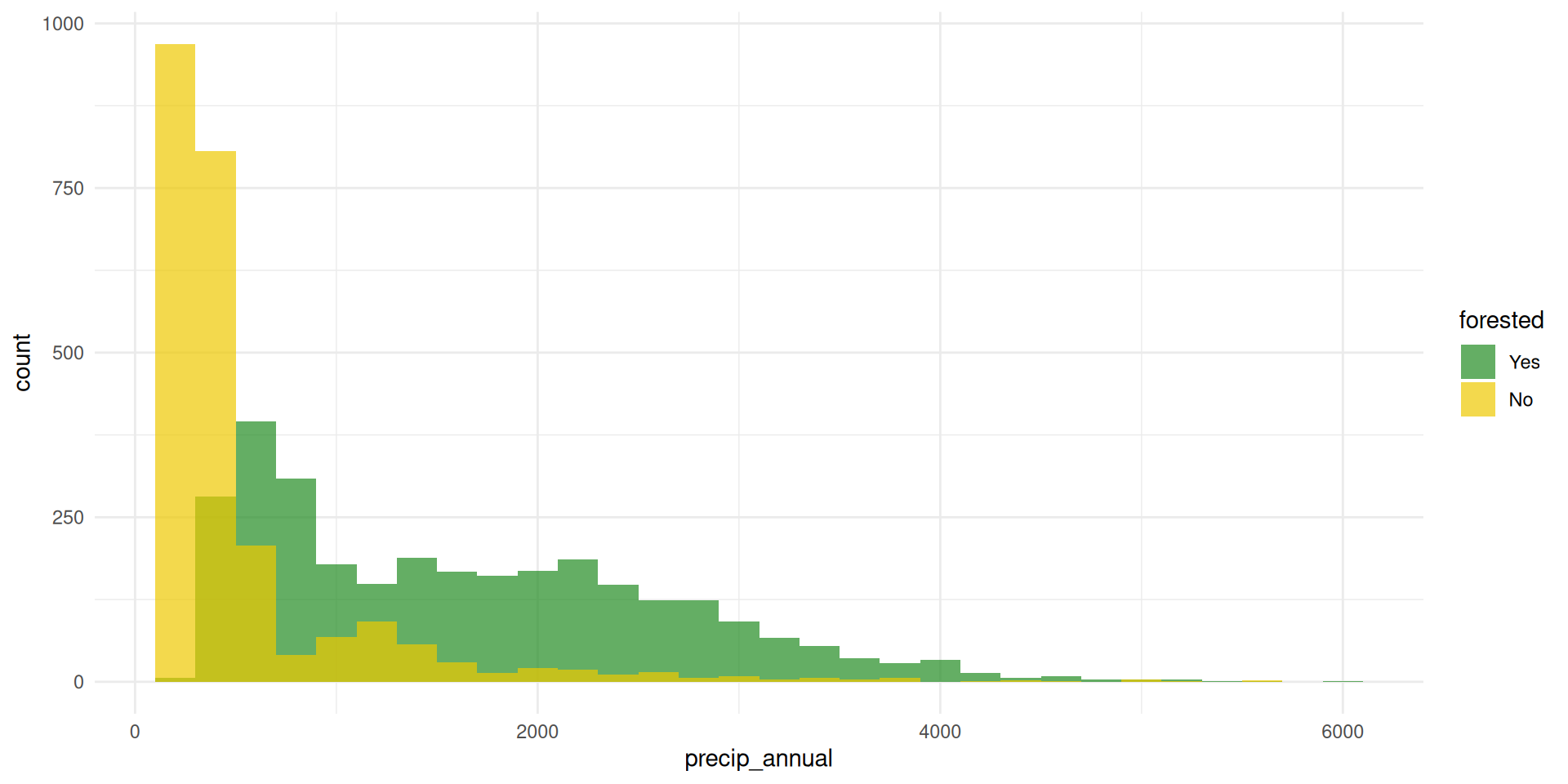

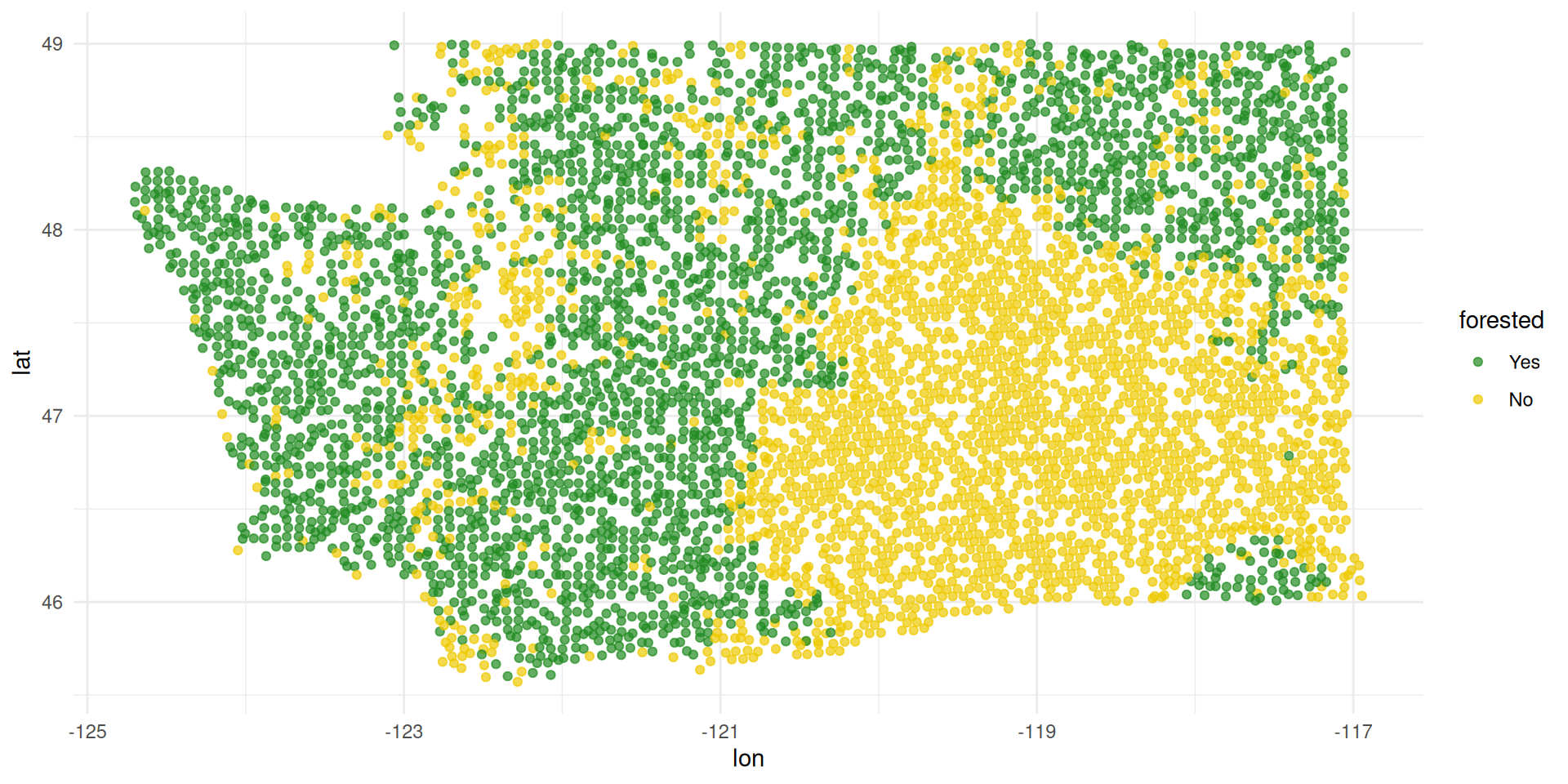

Data: forested

forested

# A tibble: 7,107 × 19
   forested  year elevation eastness northness roughness tree_no_tree
   <fct>    <dbl>     <dbl>    <dbl>     <dbl>     <dbl> <fct>
 1 Yes       2005       881       90        43        63 Tree
 2 Yes       2005       113      -25        96        30 Tree
 3 No        2005       164      -84        53        13 Tree
 4 Yes       2005       299       93        34         6 No tree
 5 Yes       2005       806       47       -88        35 Tree
 6 Yes       2005       736      -27       -96        53 Tree
 7 Yes       2005       636      -48        87         3 No tree
 8 Yes       2005       224      -65       -75         9 Tree
 9 Yes       2005        52      -62        78        42 Tree
10 Yes       2005      2240      -67       -74        99 No tree
# ℹ 7,097 more rows
# ℹ 12 more variables: dew_temp <dbl>, precip_annual <dbl>,
#   temp_annual_mean <dbl>, temp_annual_min <dbl>,
#   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#   land_type <fct>

Data: forested

glimpse(forested)

Rows: 7,107
Columns: 19
$ forested         <fct> Yes, Yes, No, Yes, Yes, Yes, Yes, Yes, Yes,…
$ year             <dbl> 2005, 2005, 2005, 2005, 2005, 2005, 2005, 2…
$ elevation        <dbl> 881, 113, 164, 299, 806, 736, 636, 224, 52,…
$ eastness         <dbl> 90, -25, -84, 93, 47, -27, -48, -65, -62, -…
$ northness        <dbl> 43, 96, 53, 34, -88, -96, 87, -75, 78, -74,…
$ roughness        <dbl> 63, 30, 13, 6, 35, 53, 3, 9, 42, 99, 51, 19…
$ tree_no_tree     <fct> Tree, Tree, Tree, No tree, Tree, Tree, No t…
$ dew_temp         <dbl> 0.04, 6.40, 6.06, 4.43, 1.06, 1.35, 1.42, 6…
$ precip_annual    <dbl> 466, 1710, 1297, 2545, 609, 539, 702, 1195,…
$ temp_annual_mean <dbl> 6.42, 10.64, 10.07, 9.86, 7.72, 7.89, 7.61,…
$ temp_annual_min  <dbl> -8.32, 1.40, 0.19, -1.20, -5.98, -6.00, -5.…
$ temp_annual_max  <dbl> 12.91, 15.84, 14.42, 15.78, 13.84, 14.66, 1…
$ temp_january_min <dbl> -0.08, 5.44, 5.72, 3.95, 1.60, 1.12, 0.99, …
$ vapor_min        <dbl> 78, 34, 49, 67, 114, 67, 67, 31, 60, 79, 17…
$ vapor_max        <dbl> 1194, 938, 754, 1164, 1254, 1331, 1275, 944…
$ canopy_cover     <dbl> 50, 79, 47, 42, 59, 36, 14, 27, 82, 12, 74,…
$ lon              <dbl> -118.6865, -123.0825, -122.3468, -121.9144,…
$ lat              <dbl> 48.69537, 47.07991, 48.77132, 45.80776, 48.…
$ land_type        <fct> Tree, Tree, Tree, Tree, Tree, Tree, Non-tre…

Data: forested

• 7107 rows and 19 columns;

• Each observation (row) is a plot of land;

• Variables include geographical and meteorological information about each plot, as well as a binary indicator forested (“Yes” or “No”);

• Given information about a plot that is easy (and cheap) to collect remotely, can we use a model to predict if a plot is forested without actually visiting it (which could be difficult and costly)?

Outcome and predictors

• Outcome: forested - Factor, Yes (baseline, 0) or No (1)

levels(forested$forested)

[1] "Yes" "No"

• Predictors: 18 remotely-sensed and easily-accessible predictors:

  • numeric variables based on weather and topography

  • categorical variables based on classifications from other governmental organizations

?forested

Should we include a predictor?

To determine whether we should include a predictor in a model, we should start by asking:

• Is it ethical to use this variable? (Or even legal?)

• Will this variable be available at prediction time?

• Does this variable contribute to explainability?

Data splitting and spending

Goal

• Use the data we’ve already seen to predict if a yet-to-be-observed plot of land is forested;

• We want a model that does well on data it has never seen before;

• “Out-of-sample” predictions on new data are more useful than “in-sample” predictions on old data;

We’ve been cheating!

• So far, we’ve been using all the data we have for building models. In predictive contexts, this would be considered cheating.

• Evaluating model performance for predicting outcomes that were used when building the models is like evaluating your learning with questions whose answers you’ve already seen.

Spending your data

For predictive models (used primarily in machine learning), we typically split data into training and test sets:

• The training set is used to estimate model parameters.

• The test set is used to find an independent assessment of model performance.

. . .

Warning

Do not use, or even peek at, the test set during training.

How much to spend?

• The more data we spend (use in training), the better estimates we’ll get.

• Spending too much data in training prevents us from computing a good assessment of predictive performance.

• Spending too much data in testing prevents us from computing a good estimate of model parameters.

The initial split

By default it’s a 75%/25% training/test split.

set.seed(847)
forested_split <- initial_split(forested)
forested_split

<Training/Testing/Total>
<5330/1777/7107>

Setting a seed

What does set.seed() do?

TLDR: The testing/training split is random, but we want the results to be reproducible, so we “freeze the random numbers in time” by setting a seed. If we don’t tell you exactly what seed to use on an assignment, you can pick any positive integer you want.

• To create that split of the data, R generates “pseudo-random” numbers: while they are made to behave like random numbers, their generation is deterministic given a “seed”.

• This allows us to reproduce results by setting that seed.

• Which seed you pick doesn’t matter, as long as you don’t try a bunch of seeds and pick the one that gives you the best performance.

Accessing the data

forested_train <- training(forested_split)
forested_test <- testing(forested_split)

The training set

forested_train

# A tibble: 5,330 × 19
   forested  year elevation eastness northness roughness tree_no_tree
   <fct>    <dbl>     <dbl>    <dbl>     <dbl>     <dbl> <fct>
 1 Yes       2017       203      -76        64        39 Tree
 2 No        2019         0        0         0         0 No tree
 3 No        2018       479        0         0         0 No tree
 4 Yes       2015       681       51       -85       127 No tree
 5 Yes       2015       909      -44       -89        42 Tree
 6 Yes       2012       118      -14       -98         2 Tree
 7 Yes       2019      1080       -3       -99       132 Tree
 8 Yes       2011        36       18        98        39 Tree
 9 Yes       2015       410      -92       -38        81 Tree
10 No        2019       764        6        99        19 No tree
# ℹ 5,320 more rows
# ℹ 12 more variables: dew_temp <dbl>, precip_annual <dbl>,
#   temp_annual_mean <dbl>, temp_annual_min <dbl>,
#   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#   land_type <fct>

The testing data

forested_test

# A tibble: 1,777 × 19
   forested  year elevation eastness northness roughness tree_no_tree
   <fct>    <dbl>     <dbl>    <dbl>     <dbl>     <dbl> <fct>
 1 Yes       2005       736      -27       -96        53 Tree
 2 Yes       2005       787       66       -74        95 Tree
 3 Yes       2005      1330       99         7       212 Tree
 4 Yes       2005      1423       46        88       180 Tree
 5 Yes       2005      1038      -34       -93       183 No tree
 6 No        2014       542      -32       -94        19 No tree
 7 No        2014       290       46       -88         7 No tree
 8 No        2014       676      -65       -75         6 No tree
 9 No        2014       252       99         5       104 No tree
10 Yes       2014      1634       54        83        38 Tree
# ℹ 1,767 more rows
# ℹ 12 more variables: dew_temp <dbl>, precip_annual <dbl>,
#   temp_annual_mean <dbl>, temp_annual_min <dbl>,
#   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#   land_type <fct>

Exploratory data analysis

Initial questions

• What’s the distribution of the outcome, forested?

• What’s the distribution of numeric variables like precip_annual?

• How does the distribution of forested differ across the categorical and numerical variables?

. . .

Which dataset should we use for the exploration? The entire data forested, the training data forested_train, or the testing data forested_test?

forested

What’s the distribution of the outcome, forested?

ggplot(forested_train, aes(x = forested)) +
  geom_bar()

forested

What’s the distribution of the outcome, forested?

forested_train |>
  count(forested) |>
  mutate(
    p = n / sum(n)
  )

# A tibble: 2 × 3
  forested     n     p
  <fct>    <int> <dbl>
1 Yes       2936 0.551
2 No        2394 0.449

precip_annual

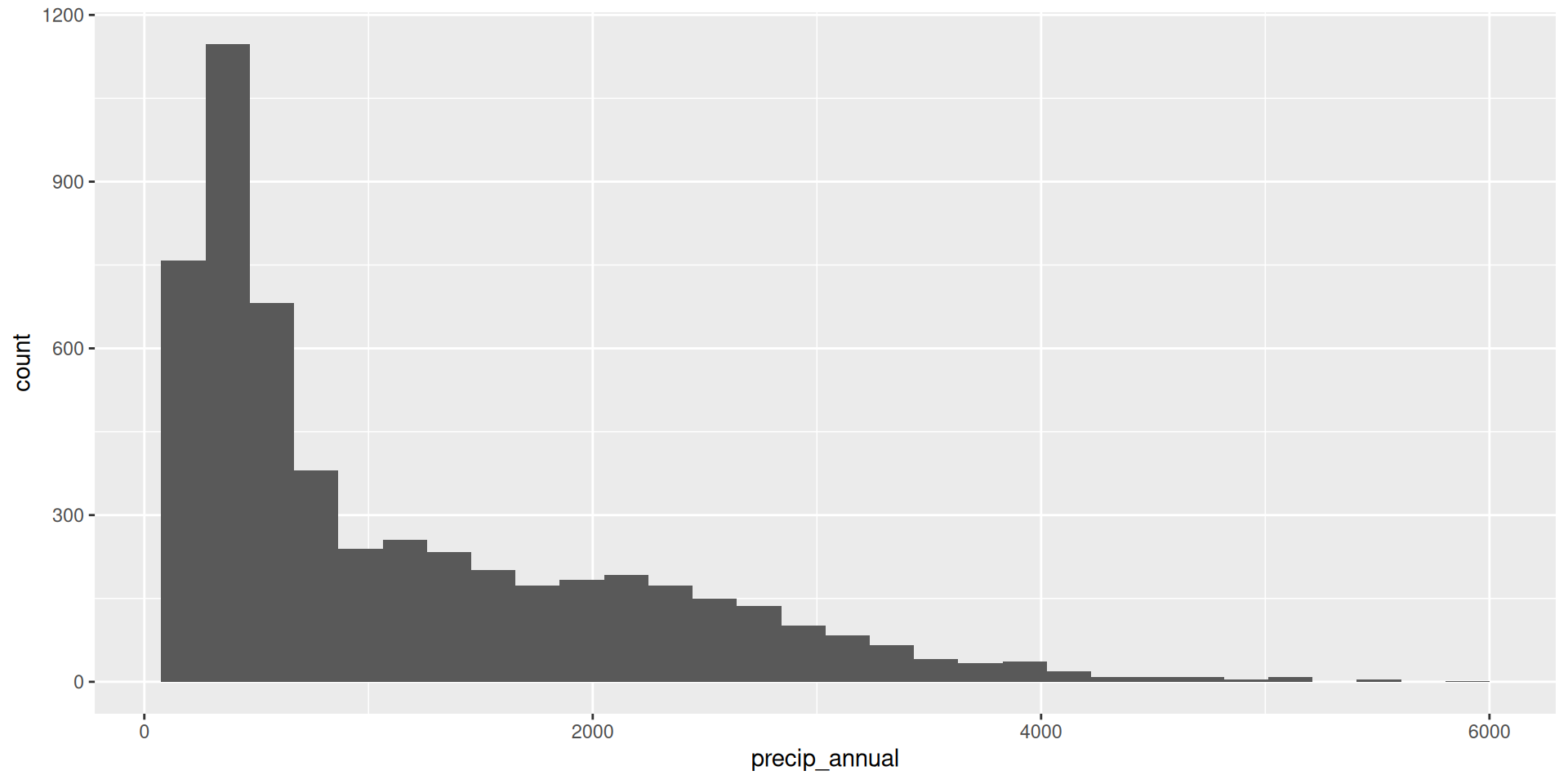

What’s the distribution of precip_annual?

ggplot(forested_train, aes(x = precip_annual)) +
  geom_histogram()

forested and precip_annual

ggplot(
  forested_train,
  aes(x = precip_annual, fill = forested, group = forested)
  ) +
  geom_histogram(binwidth = 200, position = "identity", alpha = 0.7) +
  scale_fill_manual(values = c("Yes" = "forestgreen", "No" = "gold2")) +
  theme_minimal()

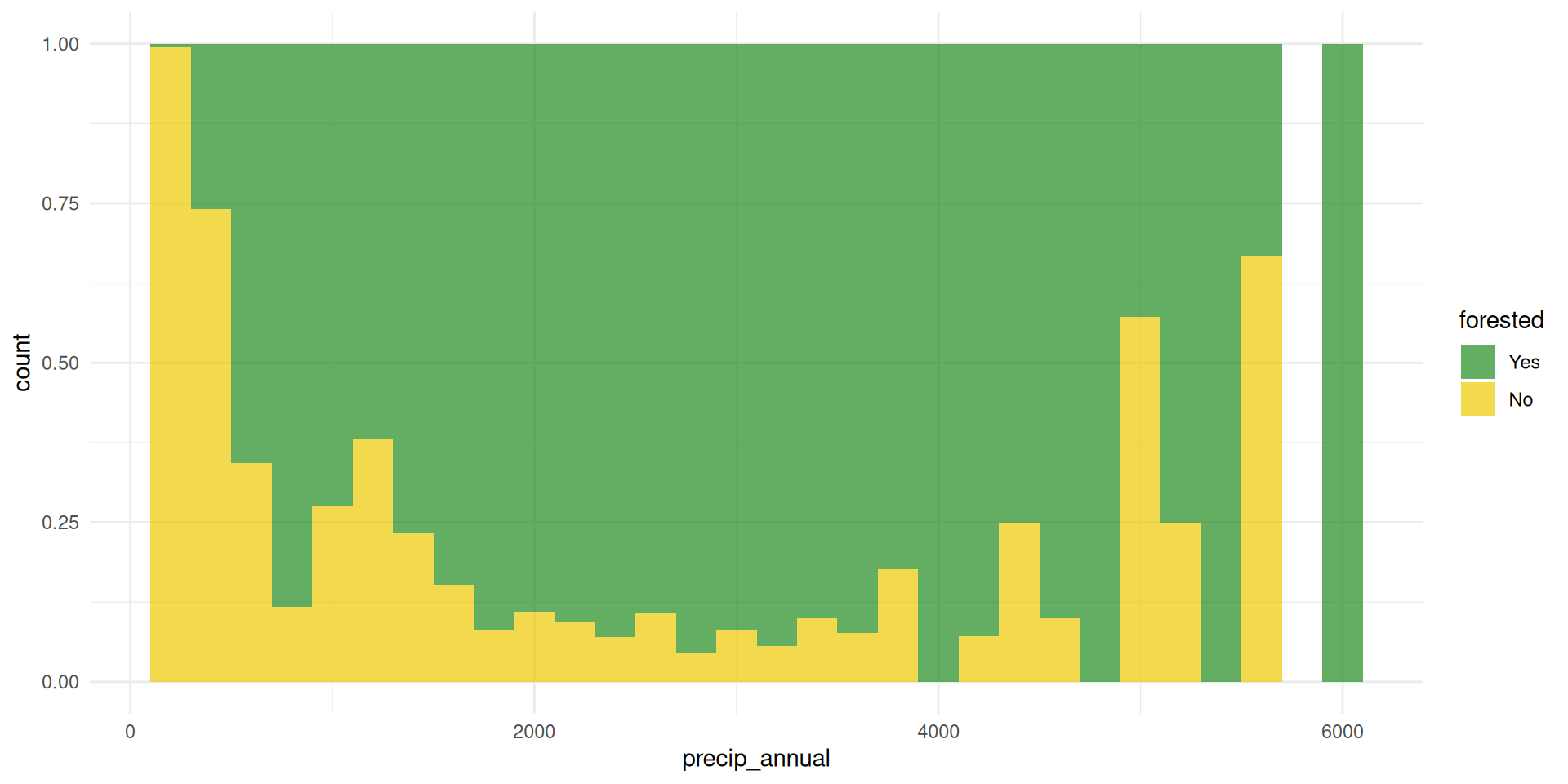

forested and precip_annual

ggplot(
  forested_train,
  aes(x = precip_annual, fill = forested, group = forested)
  ) +
  geom_histogram(binwidth = 200, position = "fill", alpha = 0.7) +
  scale_fill_manual(values = c("Yes" = "forestgreen", "No" = "gold2")) +
  theme_minimal()

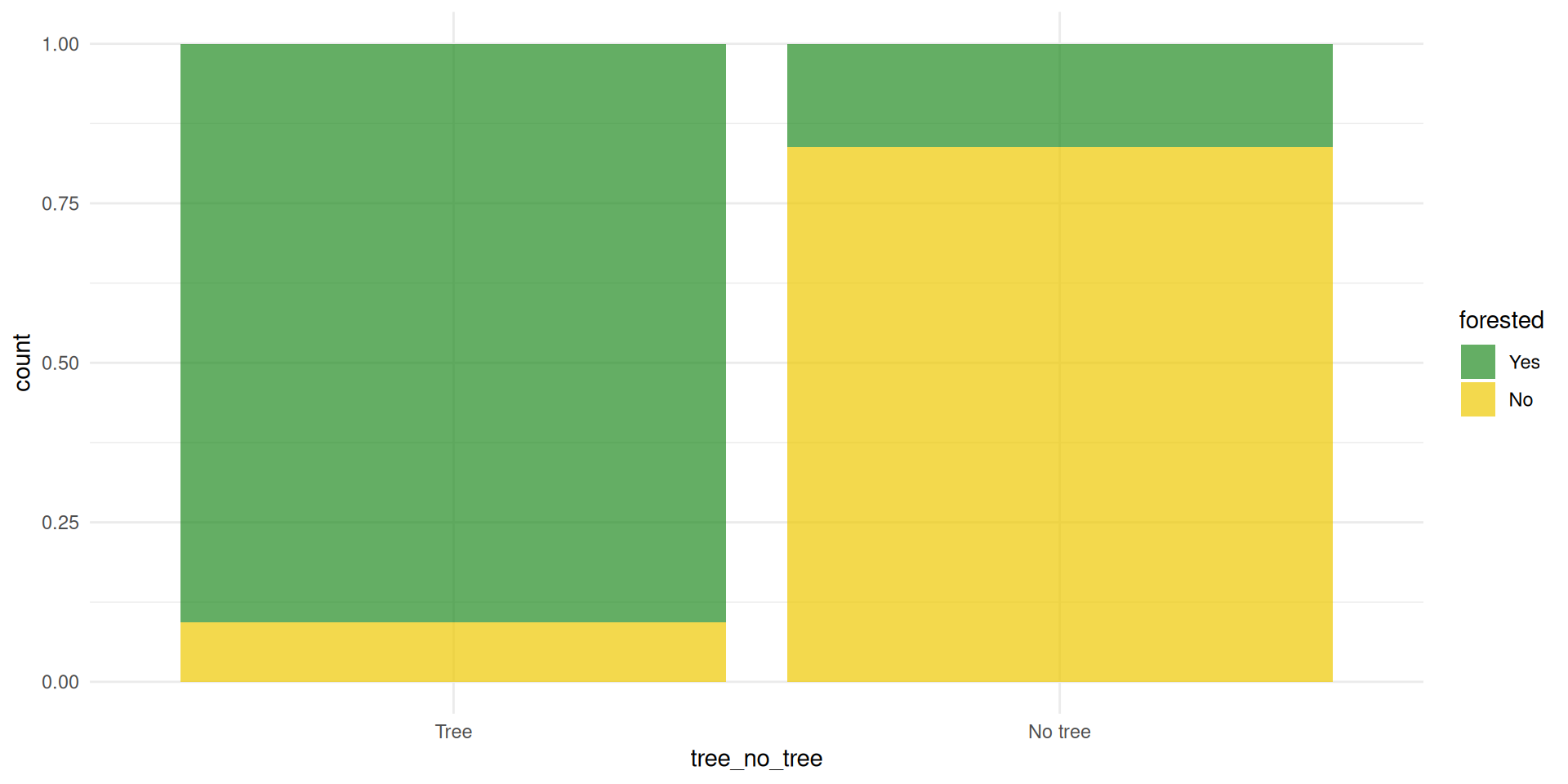

forested and tree_no_tree

ggplot(forested_train, aes(x = tree_no_tree, fill = forested)) +
  geom_bar(position = "fill", alpha = .7) +
  scale_fill_manual(values = c("Yes" = "forestgreen", "No" = "gold2")) +
  theme_minimal()

forested and lat / lon

ggplot(forested_train, aes(x = lon, y = lat, color = forested)) +
  geom_point(alpha = 0.7) +
  scale_color_manual(values = c("Yes" = "forestgreen", "No" = "gold2")) +
  theme_minimal()

precip_annual and lat / lon

ggplot(forested_train, aes(x = lon, y = lat, color = precip_annual)) +
  geom_point(alpha = 0.7) +
  labs(color = "annual\nprecipitation\n(mm × 100)") +
  theme_minimal()

Two warnings about logistic regression

FYI: the response variable must be a factor

forested already comes as a factor, so we’re lucky:

class(forested$forested)

[1] "factor"

levels(forested$forested)

[1] "Yes" "No"

. . .

But if it didn’t, things would not work:

logistic_reg() |>
  fit(as.numeric(forested) ~ precip_annual, data = forested_train)

Error in `check_outcome()`:
! For a classification model, the outcome should be a
  <factor>, not a double vector.

FYI: the base level is treated as “failure” (0)

The base level here is “Yes”, so “No” is treated as “success” (1):

levels(forested$forested)

[1] "Yes" "No"

. . .

As a result, this code:

logistic_reg() |>
  fit(forested ~ precip_annual, data = forested_train)

. . .

Corresponds to this model:

\[ \text{Prob}( \texttt{forested = "No"} ) = \frac{e^{\beta_0+\beta_1 x}}{1 + e^{\beta_0+\beta_1 x}}. \]

. . .

This is not a problem, but it means that in order to interpret the output correctly, you need to understand how your factors are leveled.

Don’t get burned on this!

There are two distinct but related things going on at the same time:

• Your binary response variable is a factor with two levels. There is a first level (base) and a second level;
• In the context of your application, one of those levels is the “negative” or “zero” case (legit e-mail) and one is the “positive” or “one” case (spam e-mail).

. . .

Do these two things agree? If not, that isn’t an error, but you might make mistakes when interpreting. Be careful!

Today’s AE

Next steps

• Fit models on training data

• Make predictions on testing data

• Evaluate predictions on testing data:

  • Linear models: R-squared, adjusted R-squared, RMSE (root mean squared error), etc.

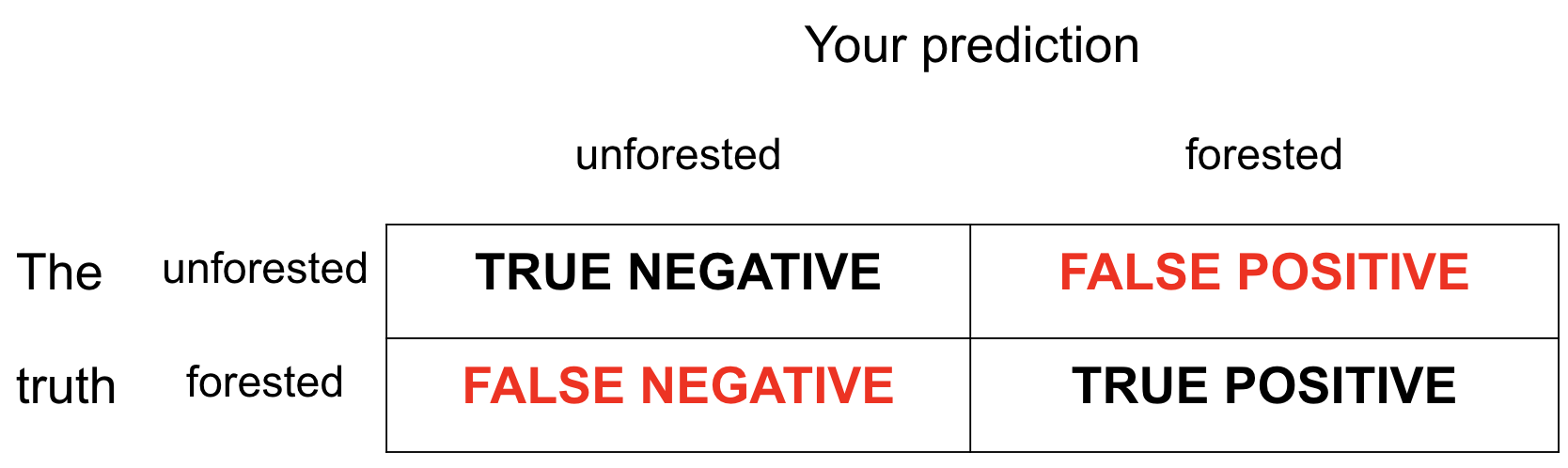

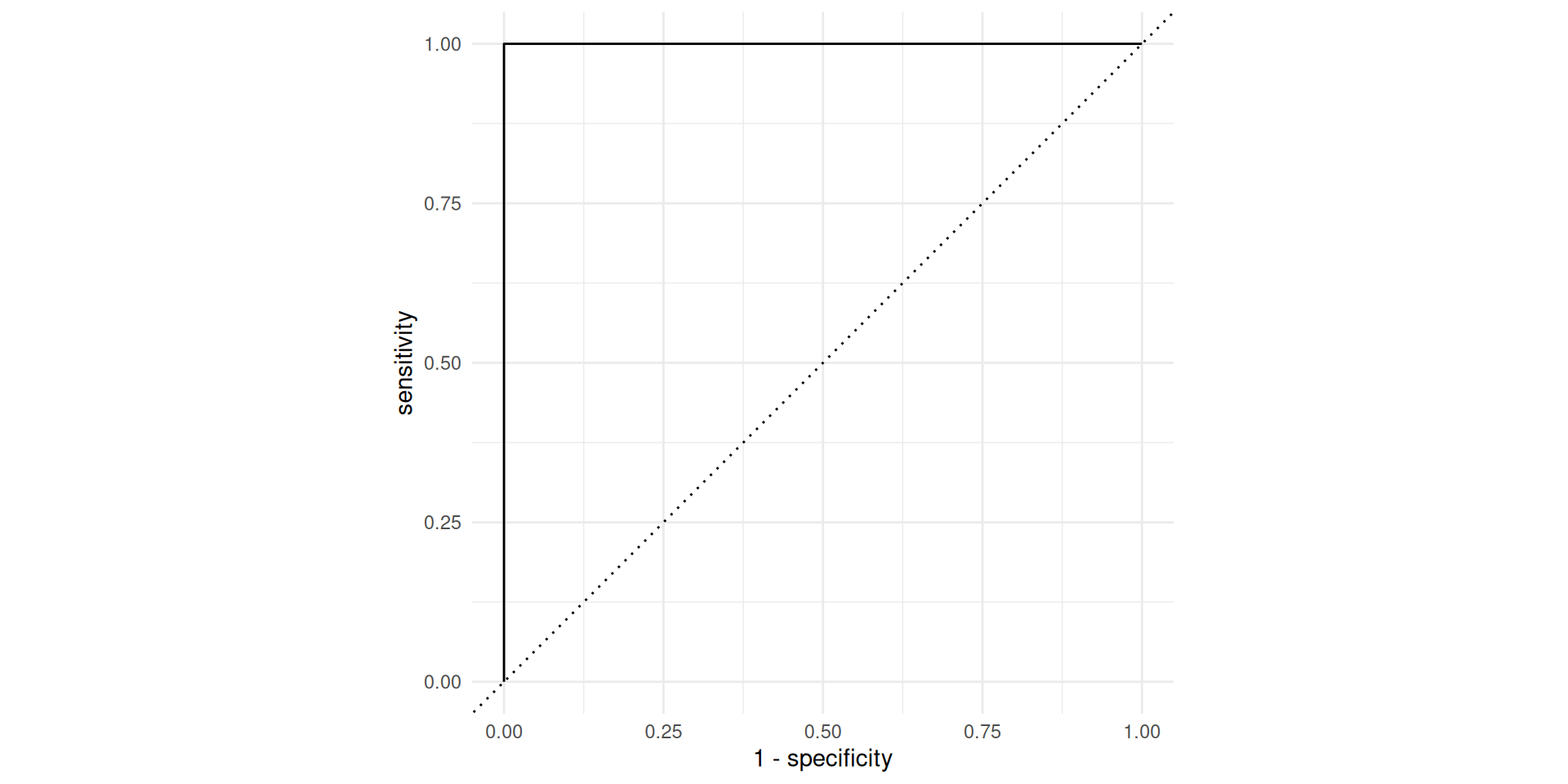

  • Logistic models: False negative and positive rates, AUC (area under the curve), etc.

• Make decisions based on model predictive performance, validity across various testing/training splits (aka “cross validation”), explainability

. . .

Note

We will only learn about a subset of these in this course, but you can go further into these ideas in STA 210 or STA 221 as well as in various machine learning courses.

ae-16-forest-classification

• Go to your ae project in RStudio.

• If you haven’t yet done so, make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.

• If you haven’t yet done so, click Pull to get today’s application exercise file: ae-16-forest-classification.qmd. You might be prompted to install forested, say yes.

• Work through the application exercise in class, and render, commit, and push your edits.

Logistic wrap-up

Fitting a logistic regression model

Similar syntax to linear regression:

forested_precip_fit <- logistic_reg() |>
  fit(forested ~ precip_annual, data = forested_train)

tidy(forested_precip_fit)

# A tibble: 2 × 5
  term          estimate std.error statistic   p.value
  <chr>            <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)    1.58    0.0558         28.3 1.25e-175
2 precip_annual -0.00190 0.0000599     -31.8 5.24e-222

. . .

\[ \log\left(\frac{\widehat{p}}{1-\widehat{p}}\right) = 1.57 - 0.0019 \times precip. \]

Three equivalent representations

Version	equation	Friendly LHS?	Friendly RHS?
Probability: (0, 1)	\[\widehat{p}=\frac{e^{b_0+b_1x}}{1+e^{b_0+b_1x}}\]	✅	❌
Odds: \((0,\,\infty)\)	\[\frac{\widehat{p}}{1-\widehat{p}}=e^{b_0+b_1x}\]	🥴	🥴
Log-odds: \((-\infty,\,\infty)\)	\[\log\left(\frac{\widehat{p}}{1-\widehat{p}}\right)=b_0+b_1x\]	❌	✅

Take your pick depending on what you’re trying to do.

Probability to log-odds

• \(p = 0 \to \text{log-odds}=-\infty\);
• \(p = 1/2 \to \text{log-odds}=0\);
• \(p = 1 \to \text{log-odds}=\infty\);
• And everything in between.

The log-odds transformation takes probabilities between 0 and 1 and streeetches them out to numbers between \(-\infty\) and \(\infty\), for which the linear model is appropriate.

Interpreting the intercept

If precip = 0, then…

\[ \widehat{\text{Prob}( \texttt{forested = "No"} \mid precip = 0)} = \frac{e^{1.57}}{1 + e^{1.57}}\approx 0.83 \]

So when \(precip = 0\), the model predicts that the probability of forested = "No" is about 83%.

Note

We didn’t interpret the intercept \(b_0=1.57\) directly. We transformed it into an interpretable quantity using the probability version of the logsitic regression model.

Interpreting the slope

Odds at \(precip\):

\[ \frac{\widehat{p}}{1-\widehat{p}} = {\color{blue}{e^{1.57 - 0.0019 \times precip}}} \]

. . .

Odds at \(precip + 1\):

\[ \begin{aligned} \frac{\widehat{p}}{1-\widehat{p}} &= e^{1.57 - 0.0019 \times (precip + 1)} \\ &= e^{1.57 - 0.0019 \times precip - 0.0019} \\ &= {\color{blue}{e^{1.57 - 0.0019 \times precip}}} \times \color{red}{e^{-0.0019}} \end{aligned} \]

. . .

If \(precip\) increases by one unit, the model predicts a decrease in the odds that forested = "No" by a multiplicative factor of \(e^{-0.0019}\approx 0.99\).

Generate predictions for the test data

Augment the test data frame with three new columns on the left that include model predictions (classifications and probabilities) for each row:

forested_precip_aug <- augment(forested_precip_fit, forested_test)
forested_precip_aug

# A tibble: 1,777 × 22
   .pred_class .pred_Yes .pred_No forested  year elevation eastness
   <fct>           <dbl>    <dbl> <fct>    <dbl>     <dbl>    <dbl>
 1 No              0.366  0.634   Yes       2005       736      -27
 2 Yes             0.977  0.0227  Yes       2005       787       66
 3 Yes             0.992  0.00808 Yes       2005      1330       99
 4 Yes             0.994  0.00598 Yes       2005      1423       46
 5 Yes             0.849  0.151   Yes       2005      1038      -34
 6 No              0.261  0.739   No        2014       542      -32
 7 No              0.243  0.757   No        2014       290       46
 8 No              0.250  0.750   No        2014       676      -65
 9 No              0.280  0.720   No        2014       252       99
10 Yes             0.577  0.423   Yes       2014      1634       54
# ℹ 1,767 more rows
# ℹ 15 more variables: northness <dbl>, roughness <dbl>,
#   tree_no_tree <fct>, dew_temp <dbl>, precip_annual <dbl>,
#   temp_annual_mean <dbl>, temp_annual_min <dbl>,
#   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#   land_type <fct>

How did the model perform?

These are the four possibilities:

• Our test data have the truth in the forested column;
• We can compare the predictions in .pred_class to the true values and see how we did.

Getting the error rates

Count how many predictions fell into the four bins:

forested_precip_aug |>
  count(forested, .pred_class)

# A tibble: 4 × 3
  forested .pred_class     n
  <fct>    <fct>       <int>
1 Yes      Yes           664
2 Yes      No            294
3 No       Yes           138
4 No       No            681

Still need all the tools from before the midterm!

Getting the error rates

Compute the error rates:

forested_precip_aug |>
  count(forested, .pred_class) |>
  group_by(forested) |>
  mutate(
    p = n / sum(n)
  )

# A tibble: 4 × 4
# Groups:   forested [2]
  forested .pred_class     n     p
  <fct>    <fct>       <int> <dbl>
1 Yes      Yes           664 0.693
2 Yes      No            294 0.307
3 No       Yes           138 0.168
4 No       No            681 0.832

Still need all the tools from before the midterm!

Getting the error rates

Label the rows so we don’t go crazy:

forested_precip_aug |>
  count(forested, .pred_class) |>
  group_by(forested) |>
  mutate(
    p = n / sum(n),
    decision = case_when(
      forested == "Yes" & .pred_class == "Yes" ~ "sensitivity",
      forested == "Yes" & .pred_class == "No" ~ "false negative",
      forested == "No" & .pred_class == "Yes" ~ "false positive",
      forested == "No" & .pred_class == "No" ~ "specificity",
    )
  )

# A tibble: 4 × 5
# Groups:   forested [2]
  forested .pred_class     n     p decision
  <fct>    <fct>       <int> <dbl> <chr>
1 Yes      Yes           664 0.693 sensitivity
2 Yes      No            294 0.307 false negative
3 No       Yes           138 0.168 false positive
4 No       No            681 0.832 specificity

FYI: error rates sum to 1 within the levels of the true outcome

• For these two, the denominator is the number of truly “zero” cases:
  • TNR: proportion of “zero” cases correctly classified as “zero;”
  • FPR: proportion of “zero” cases incorrectly classified as “one;”
• For these two, the denominator is the number of truly “one” cases:
  • FNR: proportion of “one” cases incorrectly classified as “zero,”
  • TPR: proportion of “one” cases correctly classified as “one.”

. . .

So TNR + FPR = 1 and FNR + TPR = 1.

That’s why we did group_by(forested).

FYI: the default threshold is 50%

• The model produces probabilities: .pred_Yes and .pred_No;

• The concrete classifications in the .pred_class column come from applying a 50% threshold to these probabilities:

\[ \widehat{\text{forested}}= \begin{cases} \text{No} & \text{.pred_Yes} \leq 0.5\\ \text{Yes} & \text{.pred_Yes} > 0.5. \end{cases} \]

• If you want to override that default, you must do so manually.

Change threshold to 0.75

New threshold \(\rightarrow\) New classifications \(\rightarrow\) New error rates

forested_precip_aug |>
  mutate(
    .pred_class = if_else(.pred_Yes > 0.75, "Yes", "No")
  ) |>
  count(forested, .pred_class) |>
  group_by(forested) |>
  mutate(
    p = n / sum(n),
  )

# A tibble: 4 × 4
# Groups:   forested [2]
  forested .pred_class     n      p
  <fct>    <chr>       <int>  <dbl>
1 Yes      No            489 0.510
2 Yes      Yes           469 0.490
3 No       No            760 0.928
4 No       Yes            59 0.0720

Unpacking roc_curve

Recall the augmented data frame:

forested_precip_aug |>
  select(.pred_class:forested)

# A tibble: 1,777 × 4
   .pred_class .pred_Yes .pred_No forested
   <fct>           <dbl>    <dbl> <fct>
 1 No              0.366  0.634   Yes
 2 Yes             0.977  0.0227  Yes
 3 Yes             0.992  0.00808 Yes
 4 Yes             0.994  0.00598 Yes
 5 Yes             0.849  0.151   Yes
 6 No              0.261  0.739   No
 7 No              0.243  0.757   No
 8 No              0.250  0.750   No
 9 No              0.280  0.720   No
10 Yes             0.577  0.423   Yes
# ℹ 1,767 more rows

Recall how forested is leveled:

levels(forested_precip_aug$forested)

[1] "Yes" "No"

roc_curve(forested_precip_aug,
          truth = forested,
          .pred_Yes,
          event_level = "first")

1. Supply augmented data frame;
2. Tell it which column contains true classifications;
3. Tell it which column contains the predicted probabilities for the level you care about
4. Tell it which level of truth is the one you care about

Warning

Those last two arguments need to match!

The ROC curve

forested_precip_roc <- roc_curve(forested_precip_aug,
                                 truth = forested,
                                 .pred_Yes,
                                 event_level = "first")

ggplot(forested_precip_roc, aes(x = 1 - specificity, y = sensitivity)) +
  geom_path() +
  geom_abline(lty = 3) +
  coord_equal() +
  theme_minimal()

The ROC curve

• ROC stands for receiver operating characteristic;

• This visualizes the classification accuracy across a range of thresholds;

• The more “up and to the left” it is, the better.

• We can quantify “up and to the left” with the area under the curve (AUC).

The ROC curve

AUC = 1

This is the best we could possibly do:

AUC = 1 / 2

Don’t waste time fitting a model. Just flip a coin:

AUC = 0

This is the worst we could possibly do:

AUC for the model we fit

roc_auc(
  forested_precip_aug,
  truth = forested,
  .pred_Yes,
  event_level = "first"
)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.880

Not bad!

The area under the ROC curve

• This is a “quality score” for a logistic regression model;

• When you compute it for a test data set that you set aside, the AUC is a measure of out-of-sample prediction accuracy;

• AUC is a number between 0 and 1, where 0 is awful and 1 is great, similar to \(R^2\) for linear regression.

• The function roc_auc computes it for you, and it takes the same set of arguments as roc_curve.

New commands

• logistic_reg
• augment
• roc_curve
• roc_auc
• set.seed
• initial_split, training, test
• geom_path
